Fuel Supply Kit EFI M102 16V Mercedes W201 190E 2.3-16 2.5-16

Everything for the Fuel in One Package

With the fuel supply kit you get the complete fuel side in the engine bay of your EFI conversion on the M102 16V in one set. Fuel rail, injectors, the matching adapter sleeves, fuel pressure regulator and line adapters are matched to each other. That way the KE-Jetronic of your 190E 2.3-16 or 2.5-16 becomes a clean, freely tunable injection system.

The adapter sleeves seat the injectors with a precise fit in the stock intake manifold of the 16V, the pressure regulator keeps rail pressure constant, and the blanking plate takes the old cold start valve out of service. That way the fuel side in the engine bay is in place as soon as the ECU and wiring harness are connected and the supply from the chassis side is sorted.

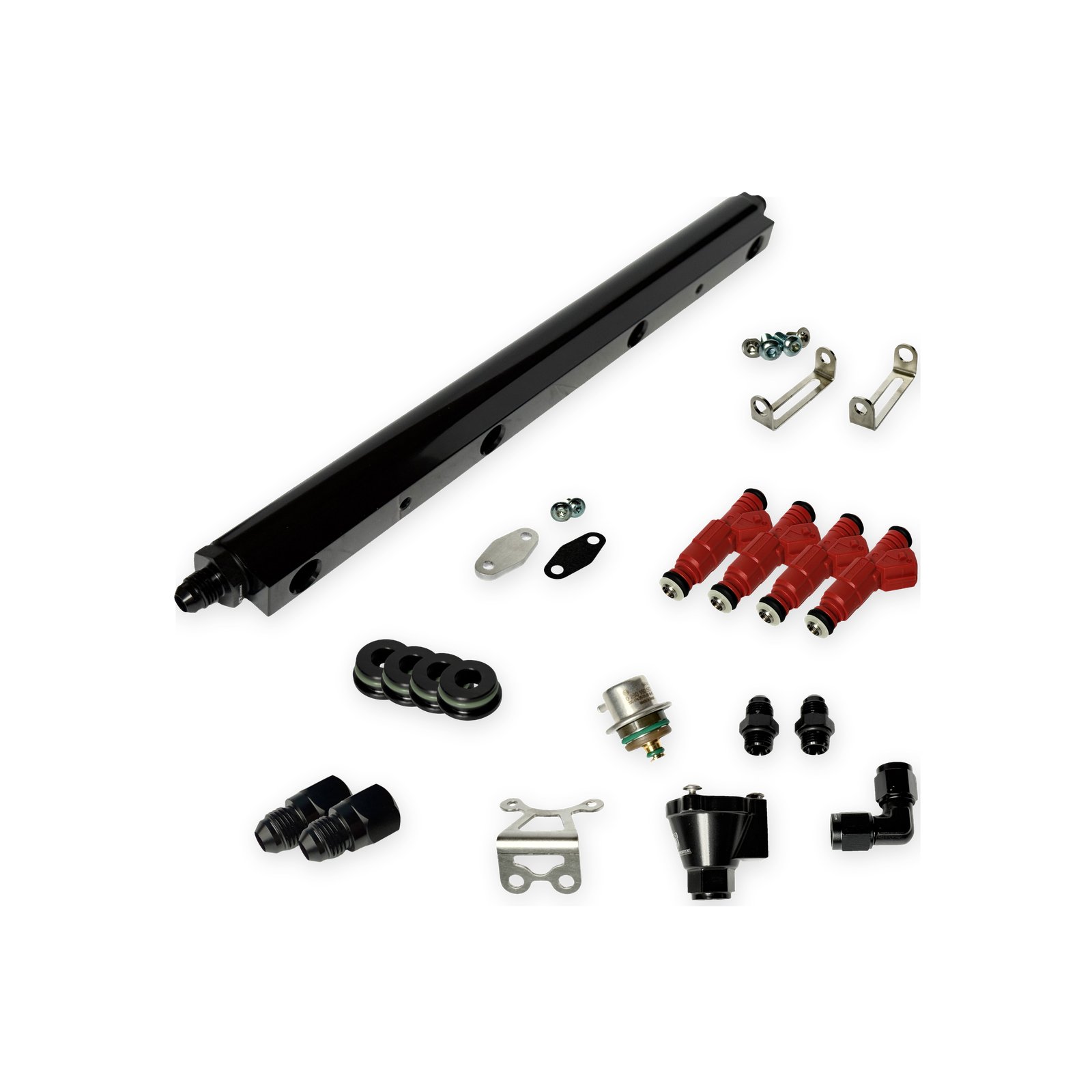

Contents

• Fuel rail for the four injectors
• 4 EFI injectors
• 4 adapter sleeves for the injectors including O-ring
• Bracket set for the stock fuel rail
• Fuel pressure regulator
• 2 Dash adapters for the fuel line at the chassis
• Blanking plate for the cold start valve with gasket and screws

Compatibility

• 190E 2.3-16 (W201)
• 190E 2.5-16 (W201)

Also take a look at the complete EFI Kit for the M102 16V if you want the whole conversion from KE-Jetronic in one package.

Note

The kit is part of an EFI conversion and requires a matching ECU plus wiring harness. Ignition and trigger sides come separately.
